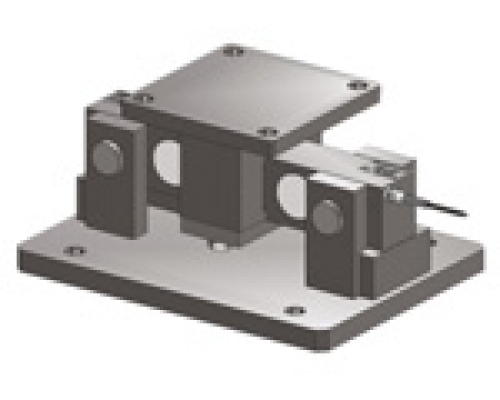

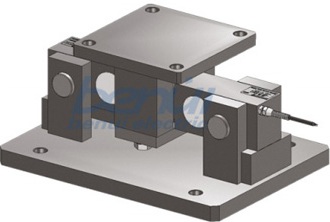

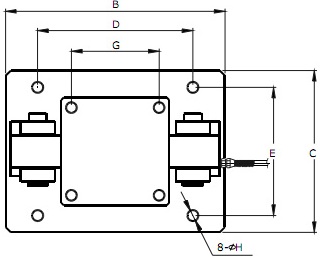

CAP./SIZE（klb）

A

B

C

D

E

F

G

H

I

J

10~25

7.90

12.00

8.00

7.50

6.00

8.00

6.00

0.78

0.75

0.75

50~75

9.30

16.25

12.00

9.50

9.50

9.00

6.50

0.78

1.00

1.00

100~125

11.75

23.50

14.00

20.00

12.00

10.00

8.00

1.12

1.50

1.50

Item Parameter

C3

Unit

Rated load (Emax):

10,20,25,35,50,75,100

klbs

Maximal numbers of load cell verification Intervals (Nlc):

3000

d

Minimum load cell verification intervals Intervals

 ( Vmin):

0.01

% of rated load

Rated output (Cn):

2.0±0.1%

mV/V

Combined error:

0.015

-% of rated output

Temperature effect on sensitivity(Tkc):

0.0012

=% of rated output/

Temperature effect on zero balance(Tk0):

0.0008

-% of rated output

Zero balance:

1.0

-% of rated output

Input resistance(Rlc):

775±5

Ω(Ohms)

Output resistance(Ro):

702±2

Ω(Ohms)

Insulation resistance:

≥5000

MΩ (Mega-Ohms)

Safe overload:

150

% of rated capability

Ultimate overload:

300

% of rated capability

Operating temperature range:

-20~+70/-20~+160

℃/ °F

Recommend excitation:

8~15

V( DC or AC)

Maximum excitation:

24

V( DC or AC)

Material of elastomer:

Alloy steel / Stainless steel

Protection class:

IP67/IP68
