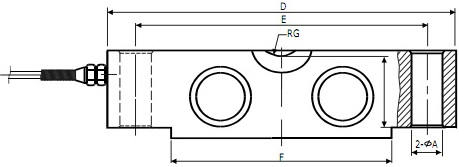

CAP./SIZE（klb）

A

B

C

D

E

F

G

H

I

J

K

L

10~25

17.3

42.9

49.3

196.9

165.1

125.1

19.1

22.9

41.4

43.2

8.8

13.6

40

20.6

49.3

62.0

260.4

215.9

162.4

25.4

28.5

50.8

53.3

9.0

31.0

50~75

27.0

60.2

74.7

260.4

215.9

162.4

25.4

34.8

64.5

67.3

10.4

37.4

Item Parameter

C3

Unit

Rated load (Emax):

10,20,25,30,40,50,75

klbs

Maximal numbers of load cell verification Intervals (Nlc):

3000

d

Minimum load cell verification intervals Intervals ( Vmin):

0.01

% of rated load

Rated output (Cn):

2.0±0.1%

mV/V

Combined error:

0.015

-% of rated output

Temperature effect on sensitivity(Tkc):

0.0012

=% of rated output/

Temperature effect on zero balance(Tk0):

0.0008

-% of rated output

Zero balance:

1.0

-% of rated output

Input resistance(Rlc):

775±5

Ω(Ohms)

Output resistance(Ro):

702±2

Ω(Ohms)

Insulation resistance:

≥5000

MΩ (Mega-Ohms)

Safe overload:

150

% of rated capability

Ultimate overload:

300

% of rated capability

Operating temperature range:

-20~+70/-20~+160

℃/ °F

Recommend excitation:

8~15

V( DC or AC)

Maximum excitation:

24

V( DC or AC)

Material of elastomer:

Alloy steel / Stainless steel

Protection class:

IP67/IP68
